Touchscreen Dual-Channel TENS EMS Machine | FDA-Cleared, 24 Modes, 20 Intensity Levels

Flagship Smart Touchscreen Dual Channel Massager (2025 Edition)

Product Overview

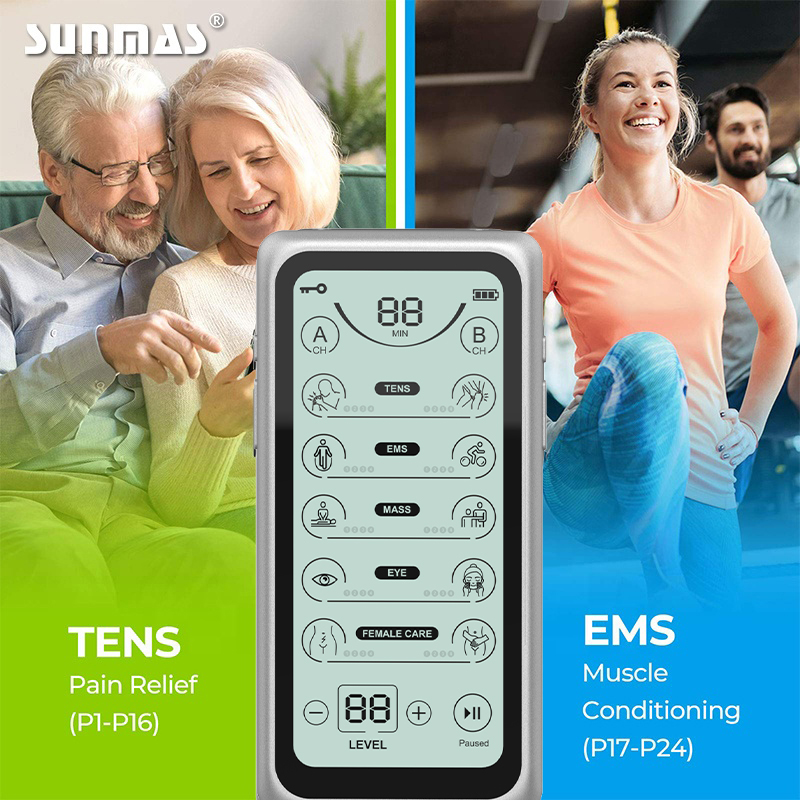

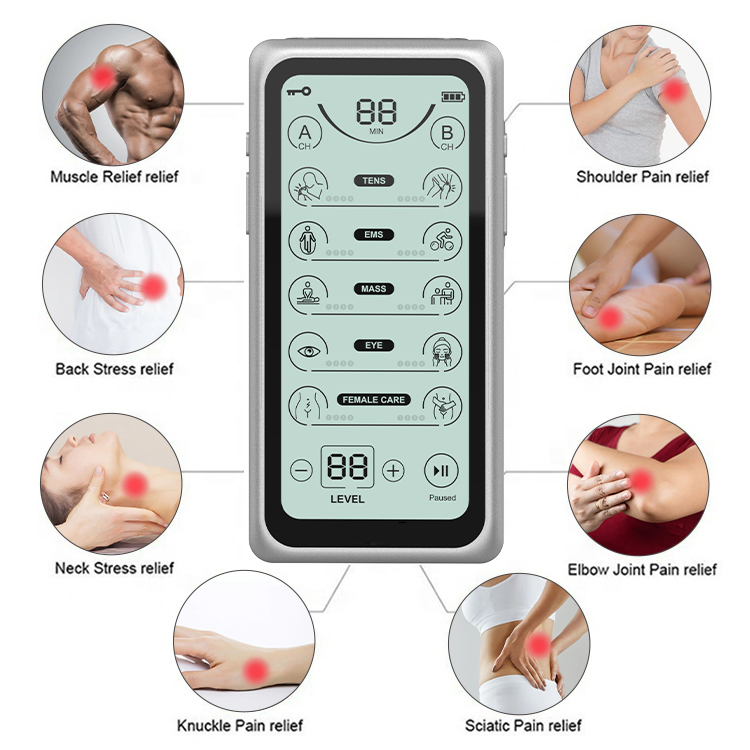

The SM9079X is a touchscreen dual-channel TENS EMS massager designed for pain relief, muscle stimulation and body relaxation. It features 24 massage modes, 20 intensity levels, A/B dual-channel output, white backlight HTN display and Type-C charging, making it suitable for use on the neck, shoulders, back, waist, arms, legs and joints. OEM/ODM customization is available for B2B projects.

Attribute	Specification
Product Name	Touchscreen Dual-Channel TENS EMS Massager
Model No.	SM9079X
Application	Neck, shoulders, back, waist, arms, legs and joints
Main Function	Pain relief, muscle stimulation and body relaxation
Channels	A/B Dual Channels
Channel Control	Shared mode control with independent intensity adjustment
Modes	24 Massage Modes
Intensity Levels	20 Intensity Levels
Timer	0–60 Minutes Adjustable Timer
Control Method	Touchscreen Control + Side Buttons
Display	White Backlight HTN Display
Battery Capacity	3.7V / 180mAh
Charging Port	Type-C USB
Charging Time	About 2.5 Hours
Pulse Frequency	1–90Hz ±10%
Pulse Width	120 / 200μs ±10%
Load Detection	Supported, intensity returns to 0 when no load is detected
Customization	OEM/ODM customization available

Welcome to the future of home-based pain management and muscle recovery. The Touchscreen Dual Channel Massager represents a monumental leap in electrotherapy technology, merging the intuitive interface of a modern smartphone with clinical-grade TENS and EMS capabilities. Designed for those who refuse to compromise on power and convenience, this Touchscreen Dual Channel Massager features a stunning 150mm large-format high-definition touch display, allowing you to navigate through its extensive therapeutic library with simple taps and swipes. Whether you are dealing with chronic back pain, neck stiffness, or post-athletic muscle fatigue, this professional Touchscreen Dual Channel Massager provides a deeply customizable recovery experience that adapts to your body's unique needs.

At the heart of the ZX-603B-32A3 is an ultra-intelligent microprocessor that coordinates 32 sophisticated massage modes across two independent channels. Unlike traditional devices with small, hard-to-read screens and tactile buttons, this Touchscreen Dual Channel Massager offers a crystal-clear visual layout where TENS (pain relief) and EMS (muscle conditioning) functions are clearly demarcated. The ergonomic, slim-profile housing (only 13.6mm thick) conceals a high-capacity 600mAh lithium battery, ensuring that your Touchscreen Dual Channel Massager remains ready for multiple sessions on a single charge. By combining a wide pulse frequency range of 1-200Hz with professional-grade biphasic rectangular waves, this Touchscreen Dual Channel Massager delivers deep-tissue penetration that was previously only available in specialized physical therapy clinics.

Touchscreen TENS EMS Machine with Dual Channel Muscle Stimulation for Pain Relief, Rehabilitation and Electrotherapy manufacture

Touchscreen TENS EMS Machine with Dual Channel Muscle Stimulation for Pain Relief, Rehabilitation and Electrotherapy supplier

Key Advantages & Features

1. Revolutionary Smartphone-Inspired Touch Interface

The defining feature of this Touchscreen Dual Channel Massager is its massive, high-sensitivity touch panel. Spanning 150mm in length, the screen provides a visual clarity that is unprecedented in the home-health industry. You can adjust the intensity, switch between 32 modes, and set your treatment timer with the same ease as using your favorite mobile app. This Touchscreen Dual Channel Massager eliminates the frustration of clicking through endless mechanical buttons, making it the perfect choice for tech-savvy users and elderly individuals alike who appreciate a clear, intuitive, and responsive user experience.

2. 32 Comprehensive Modes: The Ultimate Therapeutic Library

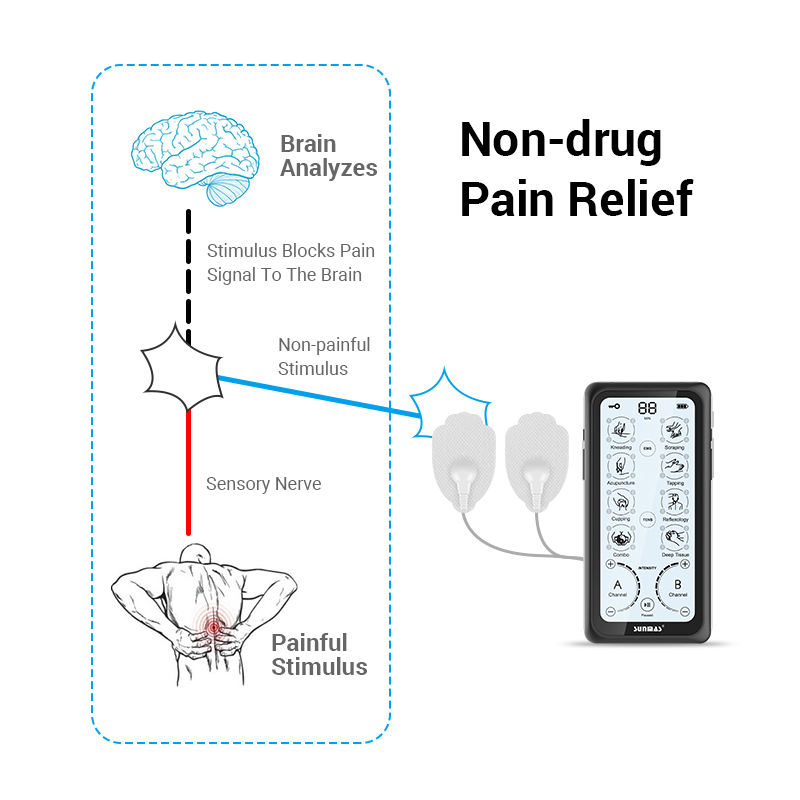

While standard devices offer 12 or 24 modes, this flagship Touchscreen Dual Channel Massager boasts 32 precision-engineered therapeutic programs. Organized into 8 major categories—including Kneading, Scraping, Acupuncture, Tapping, Cupping, Reflexology, Combo, and Deep Tissue—each category contains 4 specialized sub-modes. This allows the Touchscreen Dual Channel Massager to offer everything from gentle rhythmic relaxation to intense muscular stimulation. The dedicated TENS modes focus on blocking pain signals, while the EMS modes are scientifically designed to promote muscle contraction and improve local blood circulation, making this Touchscreen Dual Channel Massager an all-in-one solution for both recovery and performance.

3. Dual-Channel Independent Power with Unified Logic Control

Efficiency meets customization in this advanced Touchscreen Dual Channel Massager. The A and B channels operate under a unified mode selection to ensure a balanced therapeutic experience, yet the intensity levels (1-20 levels) remain completely independent. This means you can use your Touchscreen Dual Channel Massager to treat two different body areas simultaneously—such as your sensitive shoulders and your robust thigh muscles—applying high-intensity stimulation to one while keeping the other on a gentle micro-current. This "shared mode, independent power" logic simplifies the user journey while maintaining the high degree of personalization that professional users demand from a Touchscreen Dual Channel Massager.

4. Industrial-Leading 600mAh Battery for Extended Performance

Power longevity is a critical factor for any portable medical device. This Touchscreen Dual Channel Massager is equipped with an upgraded 3.7V / 600mAh high-density lithium battery, which provides nearly triple the capacity of standard models. Accompanied by a modern Type-C charging port and a high-performance 300mA adapter, this Touchscreen Dual Channel Massager charges rapidly and retains its energy with an ultra-low static current (≤50uA). Whether you are taking the Touchscreen Dual Channel Massager on a long-distance flight or using it throughout a busy work week, you can rely on consistent, uninterrupted therapy without the constant need for a power outlet.

5. Smart Memory & Safety "Load-Detection" Technology

Safety and convenience are woven into every line of code within this Touchscreen Dual Channel Massager. The device features an intelligent memory function that automatically recalls your last used mode upon startup, allowing you to resume your personalized therapy session instantly. Furthermore, the Touchscreen Dual Channel Massager incorporates a sophisticated "No-Load" protection system: the intensity cannot be increased unless the electrode pads are properly attached to the skin. If a pad detaches during use, the Touchscreen Dual Channel Massager instantly detects the lack of resistance and resets the intensity to zero, preventing any accidental or uncomfortable shocks.

6. Precision Engineering with Enhanced Pulse Specifications

For deep tissue relief, technical specs matter. This Touchscreen Dual Channel Massager supports an exceptionally wide pulse frequency range of 1Hz to 200Hz and a pulse width of 50uS to 500uS. These advanced parameters allow the Touchscreen Dual Channel Massager to reach deeper muscle fibers and nerve endings compared to budget-tier alternatives. The symmetrical biphase rectangular wave ensures a comfortable sensation without the stinging "prickly" feeling often associated with lower-quality units. With a side-mounted hardware lock key to prevent accidental screen taps, this Touchscreen Dual Channel Massager provides a secure, stable, and powerful treatment every single time.
