Multi-Functional EMS & Light Therapy Beauty DeviceProduct Overview
The SM9005 is a multifunctional facial beauty device designed for deep cleansing, skin absorption support, pore care and facial firming. It combines EMS stimulation, red light therapy, 42°C heating massage and blackhead vacuum suction in one device. With 3 EMS intensity levels, 3 suction levels, 8 red lights, 8 far-infrared lights, a 900mAh rechargeable battery and a charging base, it is suitable for OEM/ODM facial care and beauty device projects.
| Attribute |
Specification |
| Product Name |
Multifunctional EMS Red Light Facial Beauty Device |
| Model No. |
SM9005 |
| Application |
Face, pores, blackhead care and skin absorption support |
| Main Function |
EMS stimulation, red light therapy, heating massage and blackhead vacuum suction |
| Channels |
Single EMS output area + vacuum suction function |
| Channel Control |
Separate button control for EMS/light therapy and blackhead suction |
| Modes |
EMS + Red Light Therapy Mode; Blackhead Vacuum Suction Mode |
| Intensity Levels |
3 EMS intensity levels; 3 suction levels |
| Timer |
EMS no-load auto off after 5 minutes; suction working time 5 minutes |
| Control Method |
Dual Button Control |
| Display |
3 LED Indicator Lights |
| Battery Capacity |
3.7V / 900mAh |
| Charging Port |
DC Charging Port with Charging Base |
| Charging Time |
To be confirmed |
| Pulse Frequency |
200Hz |
| Pulse Width |
34μs / 56μs / 78μs ±20% |
| Load Detection |
Supported for EMS and heating function |
| Customization |
OEM/ODM customization available |
Experience a comprehensive, clinic-level facial transformation with the RL005A Multi-Functional EMS & Light Therapy Beauty Device. This premium dual-ended skincare system is meticulously engineered to provide two distinct yet complementary facial treatments. The primary end features a sophisticated metallic massage head equipped with intelligent EMS (Electrical Muscle Stimulation), advanced thermal heating, and a dual-wavelength light matrix (8 Red Lights + 8 Far-Infrared Lights) to rejuvenate, firm, and brighten the skin. The reverse end houses a high-powered blackhead extraction vacuum to deeply purify pores and remove impurities.
The RL005A is designed with smart-touch load-sensing technology, ensuring the active EMS, heating, and light therapy functions strictly engage only upon contact with your skin, maximizing safety and energy efficiency. Complete with an elegant charging dock, 6 interchangeable vacuum nozzles, and a highly intuitive LED status interface, this all-in-one device empowers you to achieve a deeply cleansed, tightened, and radiant complexion from the comfort of your home.
Designed with both consumer needs and commercial applications in mind, the RL005A Multi-Functional EMS & Light Therapy Beauty Device provides an ideal solution for companies looking to develop advanced skincare product lines. Its combination of EMS stimulation, LED light therapy, thermal heating, and vacuum cleansing technologies creates a comprehensive beauty experience that meets the growing demand for multifunctional home-use aesthetic devices.
With its compact structure, intelligent control system, and professional-level performance, the RL005A is suitable for a wide range of markets, including beauty equipment distributors, skincare brands, online retailers, and professional beauty service providers. The device not only improves daily skincare efficiency for end users but also offers strong market potential for businesses seeking innovative personal care products.
The premium design, reliable hardware configuration, and user-friendly operation make the RL005A an excellent choice for private label projects, OEM/ODM cooperation, and global beauty equipment distribution. By combining advanced technology with practical usability, this device helps partners create competitive skincare solutions that deliver enhanced customer satisfaction and long-term commercial value.
Key Advantages & Features
1. Advanced EMS & Dual-Wavelength Light Matrix

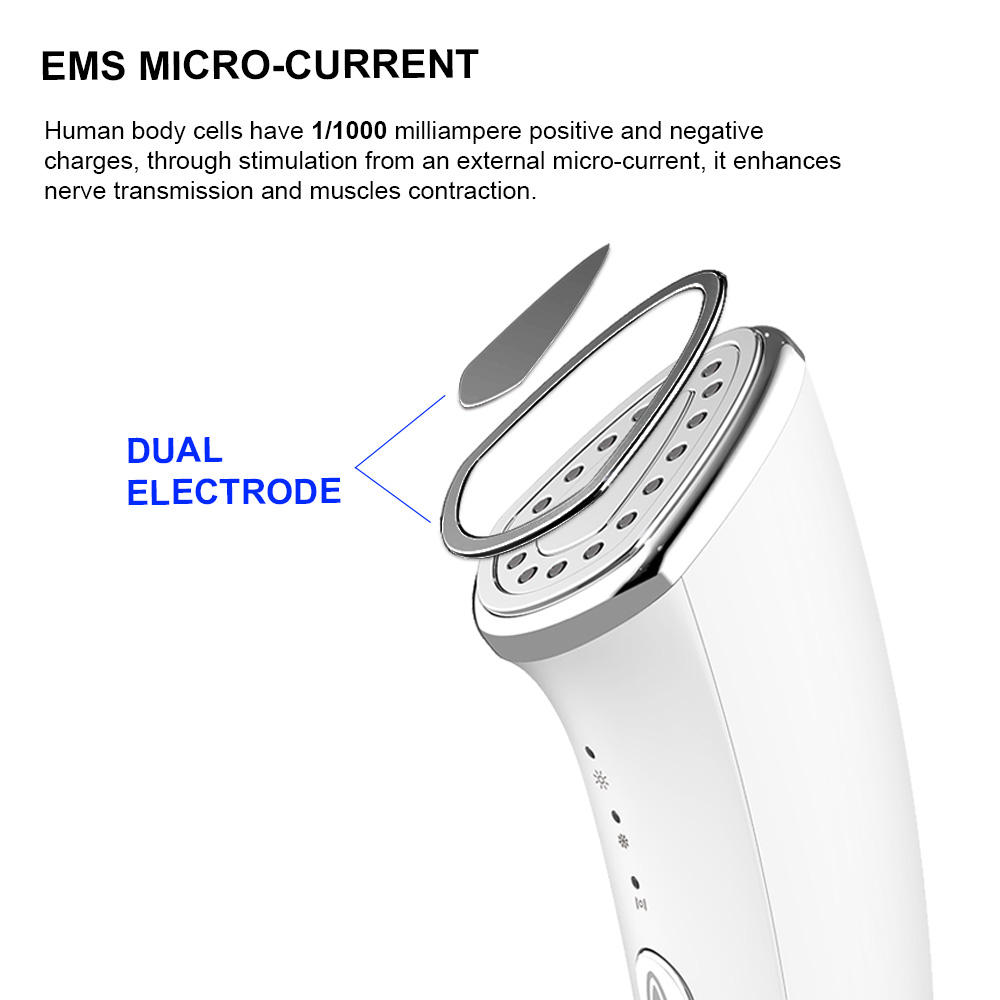

Re-energize your skin at the cellular level. The metal treatment head integrates a precision 200Hz EMS micro-current system with a powerful array of 8 Red Lights and 8 Far-Infrared Lights. This combination stimulates collagen production, improves elasticity, and lifts facial contours. The device scales through 3 distinct EMS intensities (controlled by adjusting the pulse width from 34uS to 78uS) to suit your unique skin sensitivity.
2. Smart-Touch Thermal Activation
Intelligent skincare that responds to you. The device features an active load-detection system. The 42°C thermal heating, EMS, and light therapy functions remain dormant until the metal head makes physical contact with your skin. This hardware-level smart-touch feature ensures safe operation, prevents overheating, and conserves the battery, delivering targeted heat exactly when and where your skin needs it.
3. Professional-Grade Vacuum with 6 Custom Nozzles

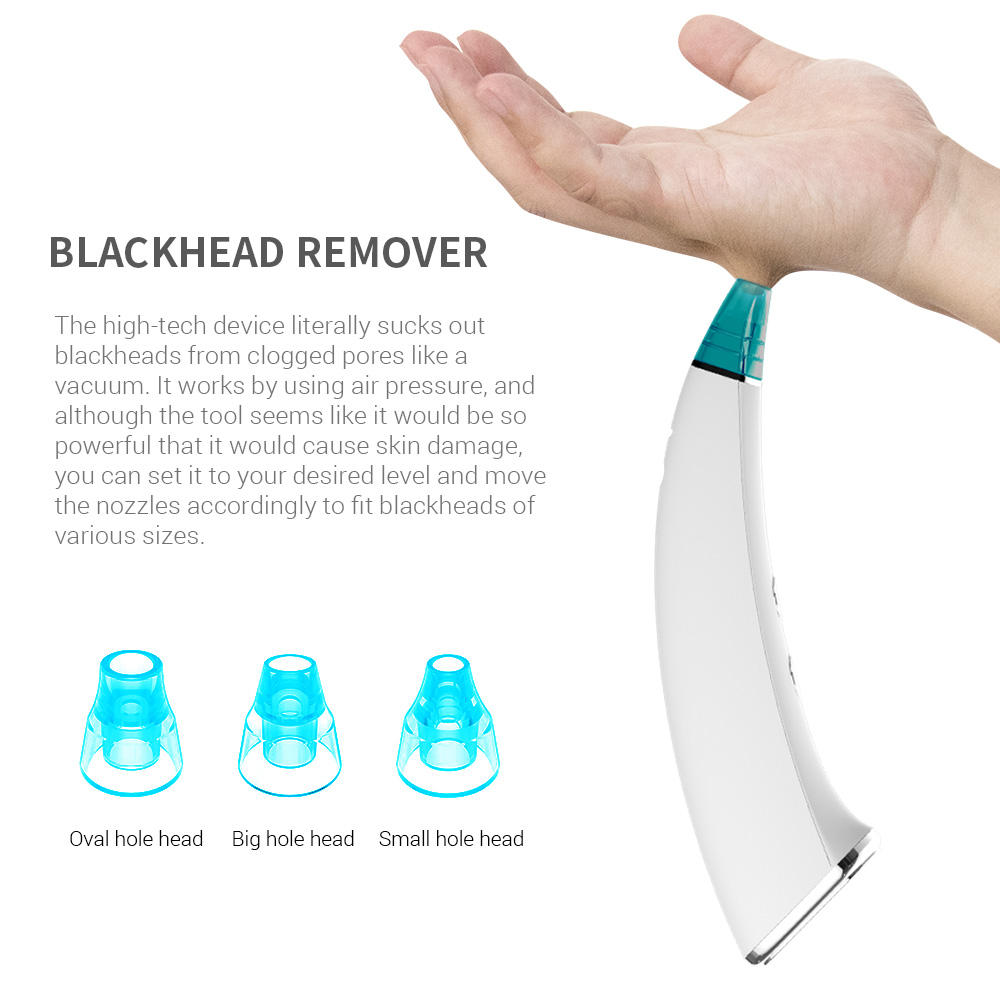

Tailored pore purification. The reverse end features a dedicated vacuum extraction pump with 3 adjustable suction levels. Ranging from a gentle -30KPa for sensitive areas to a powerful -60KPa+ for stubborn blackheads, the system is engineered for thorough extraction. Paired with 6 interchangeable suction nozzles, you can precisely target different facial zones and skin types for a flawless, customized cleanse.
4. Smart Timers & Load Detection Safety
Engineered for absolute user protection. The EMS function will automatically power down after 5 minutes of inactivity (no skin contact detected) with a long buzzer alert. The blackhead vacuum is governed by a strict 5-minute total session timer to prevent overuse and skin bruising. Any button operation or load detection instantly resets the timer, keeping you in full control of your session.
5. Intuitive UI & Dual-Charging Ecosystem

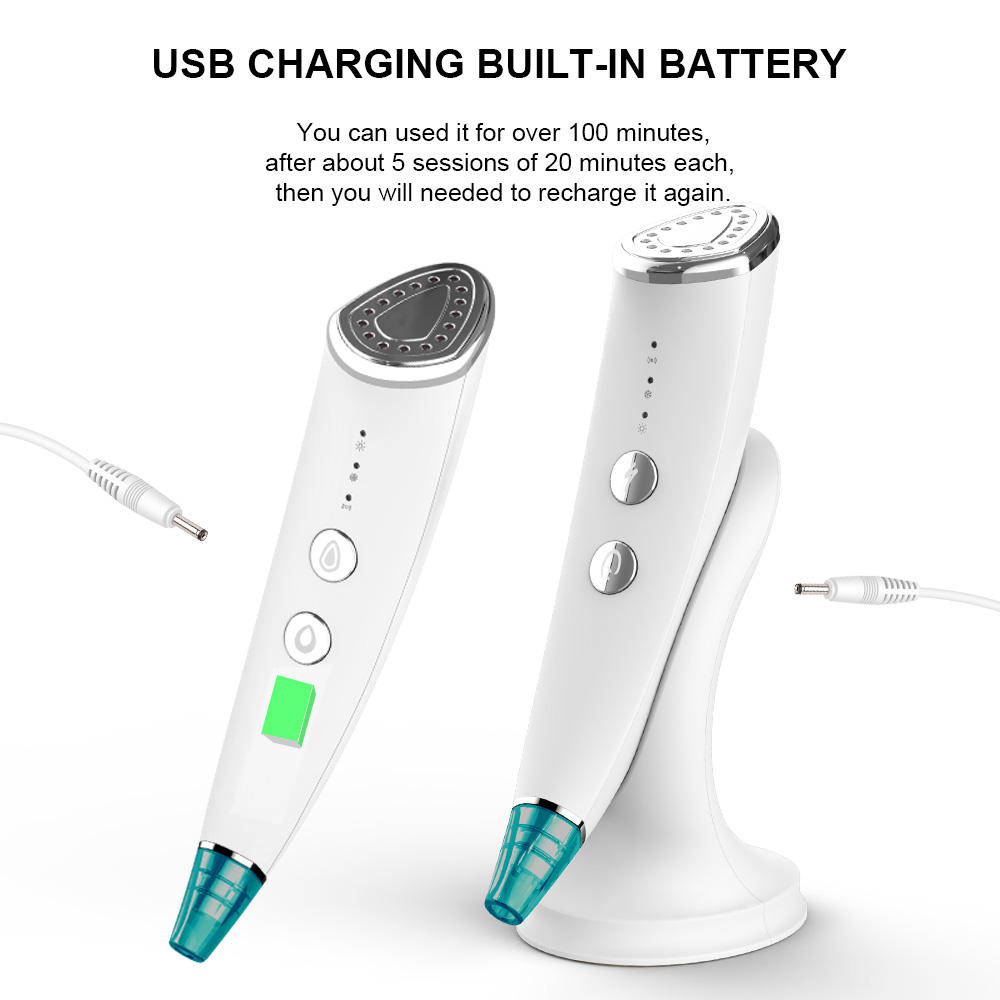

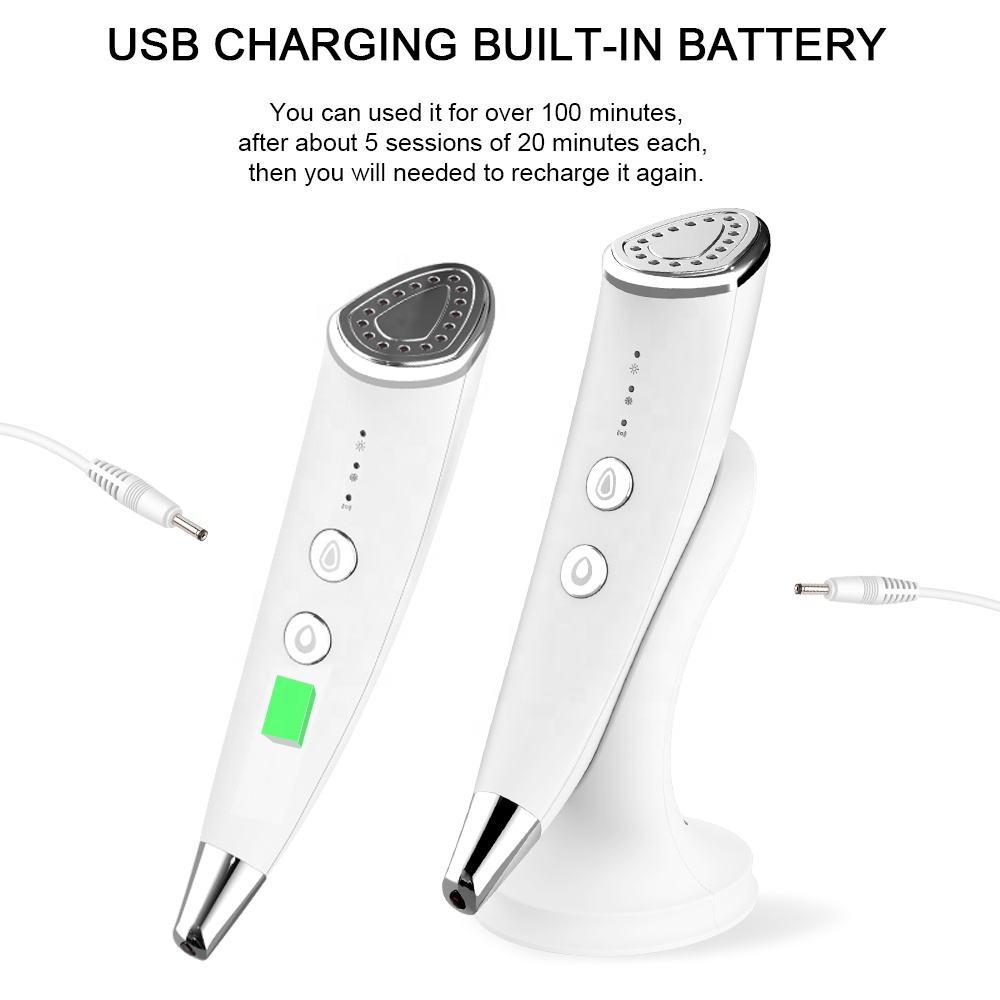

Effortless monitoring and charging. The device utilizes a vibrant 3-LED multi-color interface to communicate battery health, active modes, and intensity levels (Blue for EMS, Blue/Green combos for Vacuum). Power management is handled by a high-discharge 900mAh battery that can be recharged either by resting the device on its premium Pogo-pin charging dock or via a direct DC plug, ensuring it is always ready for your routine.
Technical Specifications
Parameter Items Official Product Specifications (RL005A)
Product Name Multi-Functional EMS & Light Therapy Beauty Device
Dimensions Main Unit: 198.4 x 51.2 x 41.2 mm | Combined w/ Base: 196.35 x 132.4 x 68 mm
Material Composition Premium ABS Body + Metal Treatment Head
Included Accessories Charging Base, 6 Interchangeable Vacuum Nozzles

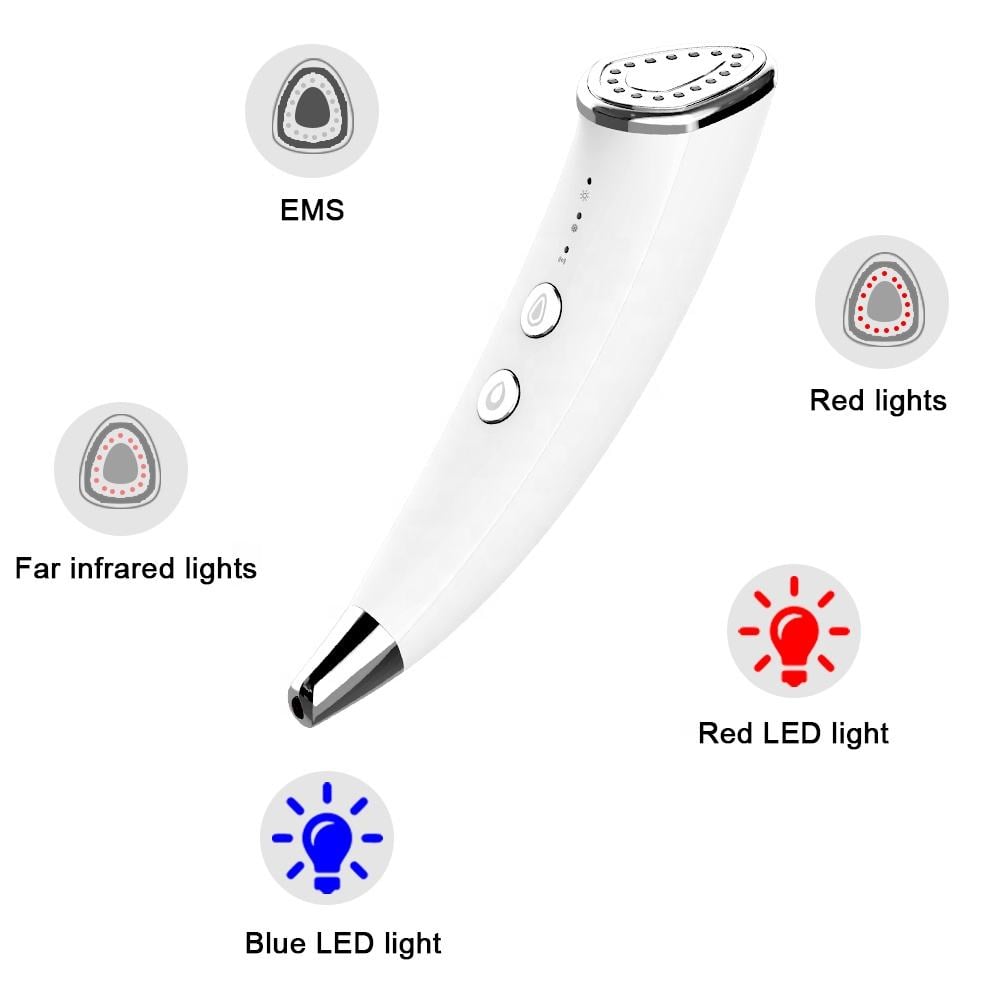

Dual Core Functions EMS + Red/Far-Infrared Light + Heating Massage | Blackhead Vacuum Extraction
Thermotherapy Metrics 42°C ±2°C Heating (Activates exclusively under skin load)

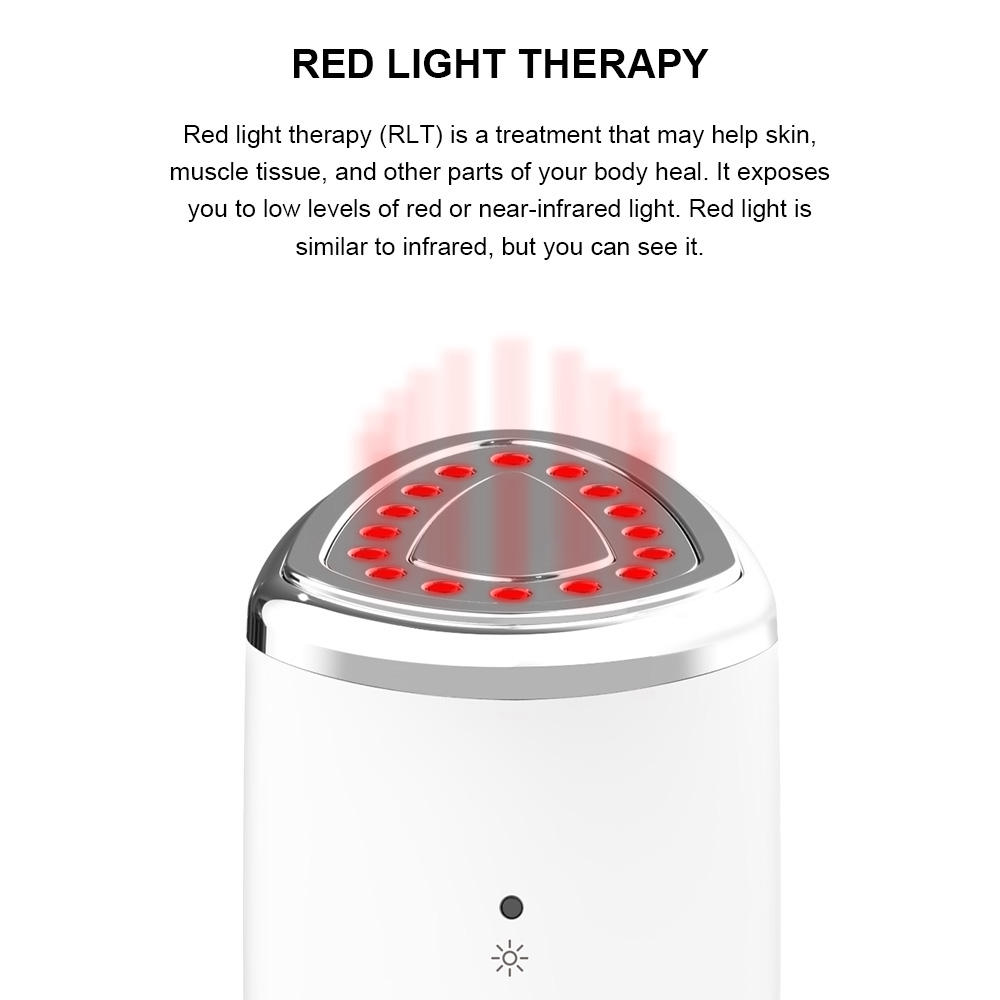

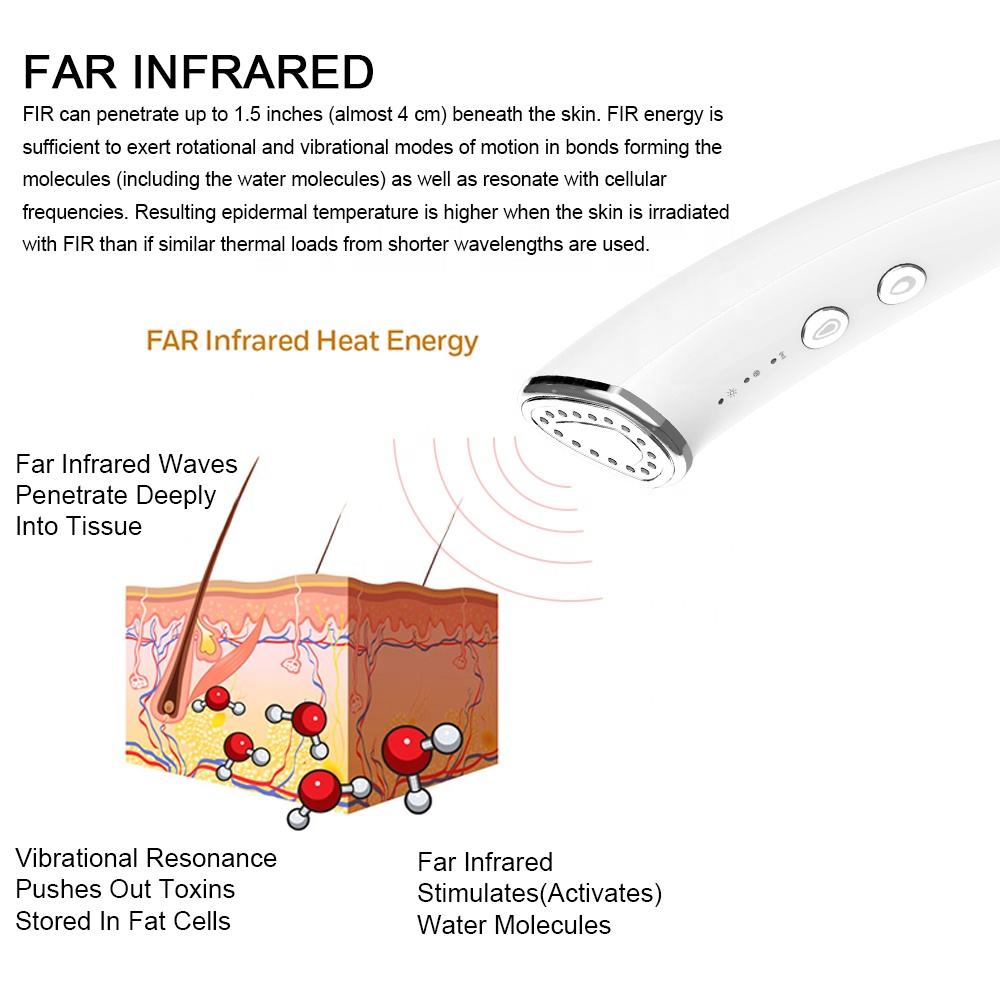

Light Therapy Matrix 8 x Red LEDs + 8 x Far-Infrared LEDs
EMS Specifications Frequency: 200Hz | Max Output: 9.5V ±10% (500Ω load)
EMS Intensity Levels 3 Levels via Pulse Width: L1 (34uS ±20%), L2 (56uS ±20%), L3 (78uS ±20%)
Vacuum Suction Power Level 1: -30 to -40KPa | Level 2: -45 to -55KPa | Level 3: $\ge$ -60KPa
Control Logic Independent Dual-Buttons (Long press 2s for On/Off; short press to toggle levels)
Acoustic Feedback 1 short beep per click; 1 long beep on power up; 2 beeps on manual power down
Smart Timers EMS auto-off after 5 mins no-load | Vacuum auto-off after 5 mins total runtime
Battery Specification 3.7V / 900mAh (3C high-discharge) Rechargeable Lithium Battery
Power Metrics Input: DC 5.0V / 1.0A | Working Current: 0–3A | Static Standby: < 15uA
Charging Lockout Hardware strictly locked during charging; device cannot be operated
Low Voltage Alert Triggers at 3.4V ±0.1V (5 buzzer beeps followed by auto-shutdown)
×
