Professional Dual-Channel TENS EMS Machine | 24 Modes, FDA-Cleared for Clinical Pain Management

Smart Notch Touchscreen Dual Channel Massager

Product Overview

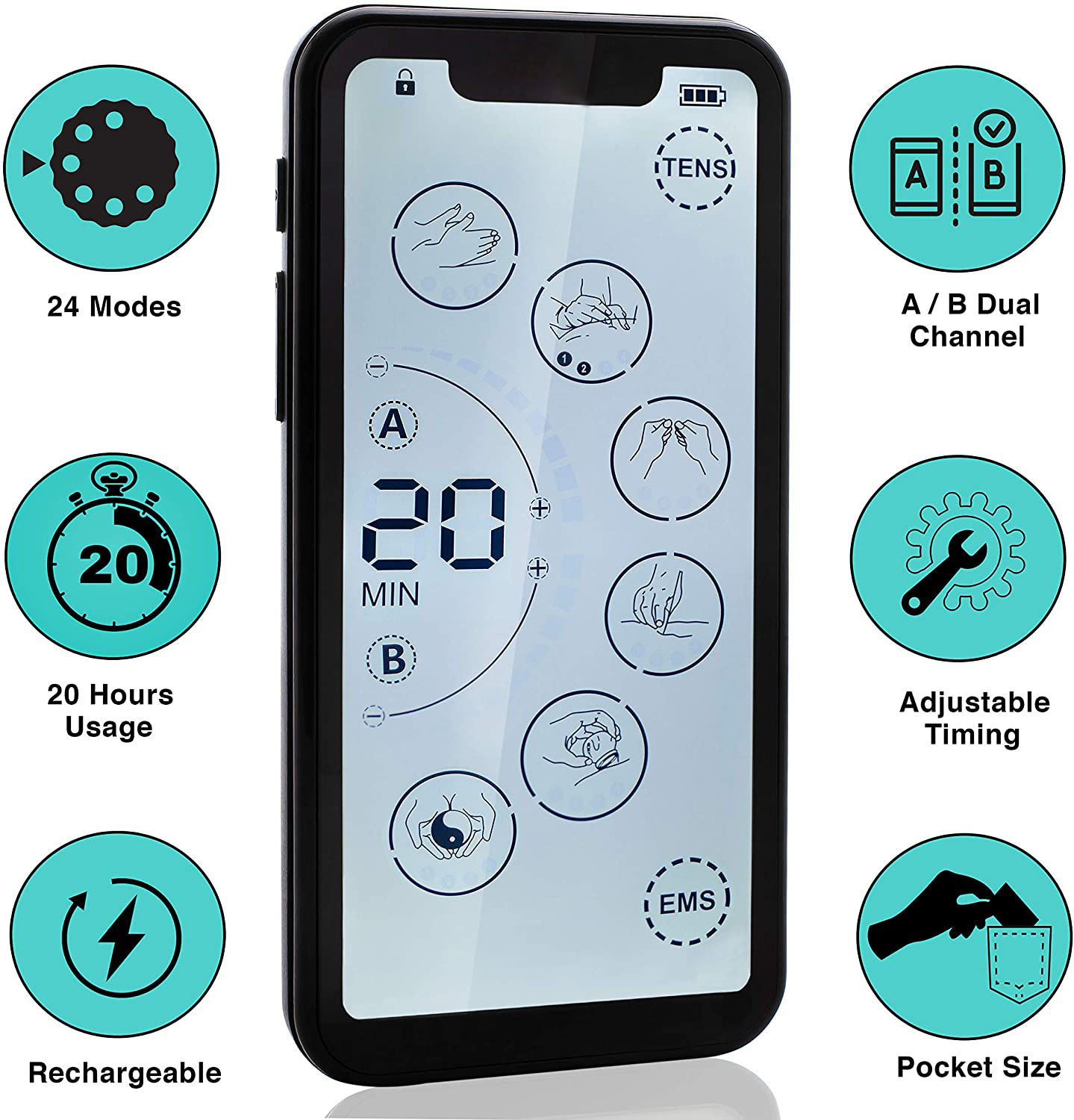

The SM9079X is a touchscreen dual-channel TENS EMS massager designed for pain relief, muscle stimulation and body relaxation. It features 24 massage modes, 20 intensity levels, A/B dual-channel output, white backlight HTN display and Type-C charging, making it suitable for use on the neck, shoulders, back, waist, arms, legs and joints. OEM/ODM customization is available for B2B projects.

Attribute	Specification
Product Name	Touchscreen Dual-Channel TENS EMS Massager
Model No.	SM9079X
Application	Neck, shoulders, back, waist, arms, legs and joints
Main Function	Pain relief, muscle stimulation and body relaxation
Channels	A/B Dual Channels
Channel Control	Shared mode control with independent intensity adjustment
Modes	24 Massage Modes
Intensity Levels	20 Intensity Levels
Timer	0–60 Minutes Adjustable Timer
Control Method	Touchscreen Control + Side Buttons
Display	White Backlight HTN Display
Battery Capacity	3.7V / 180mAh
Charging Port	Type-C USB
Charging Time	About 2.5 Hours
Pulse Frequency	1–90Hz ±10%
Pulse Width	120 / 200μs ±10%
Load Detection	Supported, intensity returns to 0 when no load is detected
Customization	OEM/ODM customization available

In an era where daily stress, sedentary work habits, and intense physical activities constantly challenge our bodies, having a reliable personal physical therapy device is essential. The all-new Dual Channel Massager is a revolutionary step forward in portable electrotherapy, seamlessly blending modern smartphone aesthetics with professional-grade pain relief. Featuring an innovative "notch" touchscreen design with a crystal-clear HTN positive display and a soothing white backlight, this premium Dual Channel Massager provides a user-friendly, highly intuitive experience. Whether you are managing chronic back pain, alleviating neck tension, or seeking fast muscle recovery after a workout, this advanced Dual Channel Massager utilizes proven TENS and EMS technologies to stimulate deep tissues and restore your body's natural vitality.

Engineered for maximum versatility and ease of use, this smart Dual Channel Massager combines responsive touch controls with tactile side physical buttons, giving you the ultimate freedom to navigate your therapy sessions. The device operates on a unified mode logic for both A and B outputs, yet allows for completely independent intensity adjustments across its 20 power levels. Equipped with a universally compatible Type-C charging port, an upgraded 180mAh lithium battery, and state-of-the-art smart load-detection safety protocols, this compact Dual Channel Massager ensures safe, uninterrupted relief wherever you go. Take control of your physical well-being and experience clinic-level relaxation at home, in the office, or on the road with this state-of-the-art Dual Channel Massager.

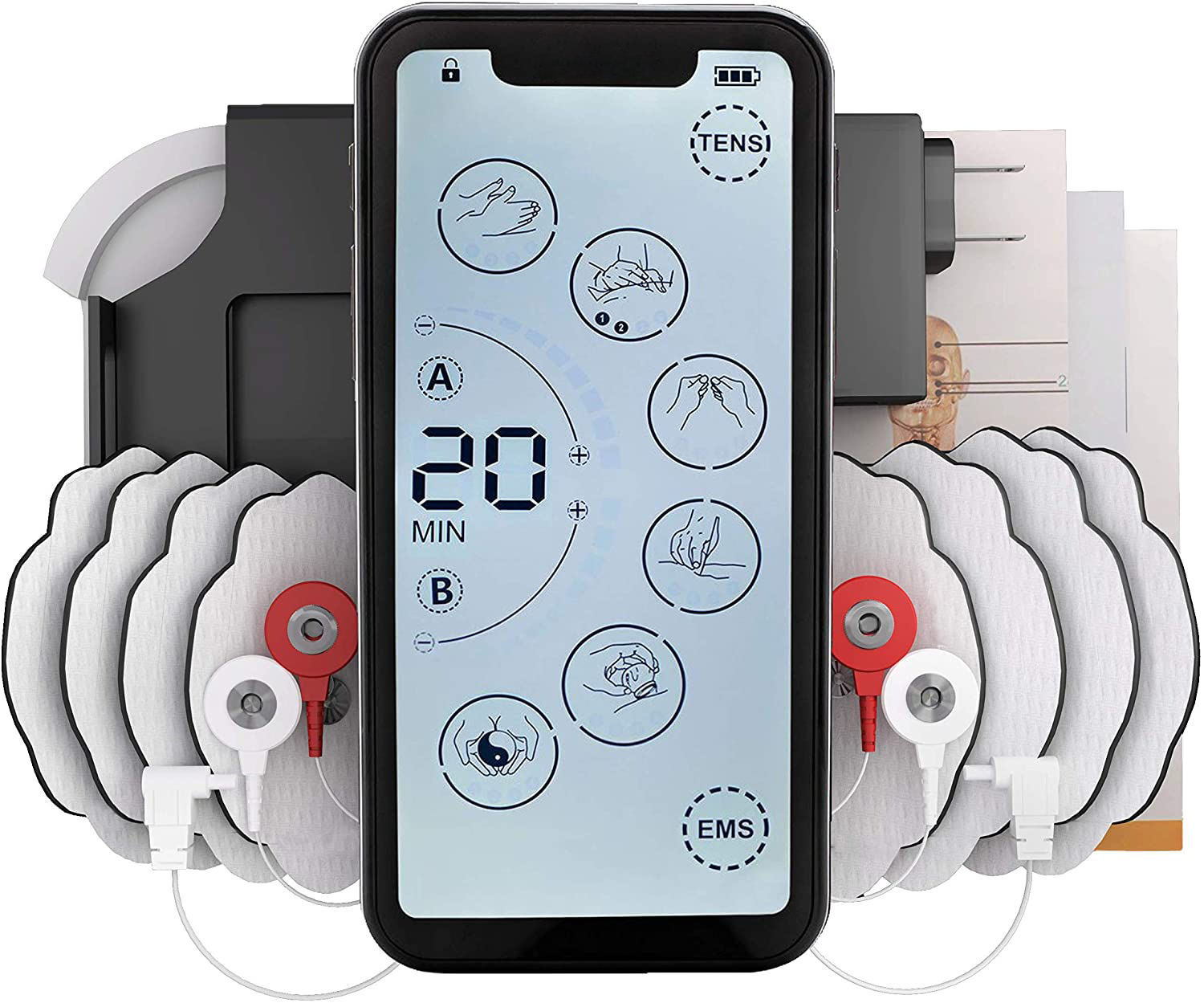

Professional Touchscreen TENS EMS Muscle Stimulator Machine for Pain Management, Muscle Recovery and Rehabilitation Therapy manufacture

Professional Touchscreen TENS EMS Muscle Stimulator Machine for Pain Management, Muscle Recovery and Rehabilitation Therapy supplier

Key Advantages & Features

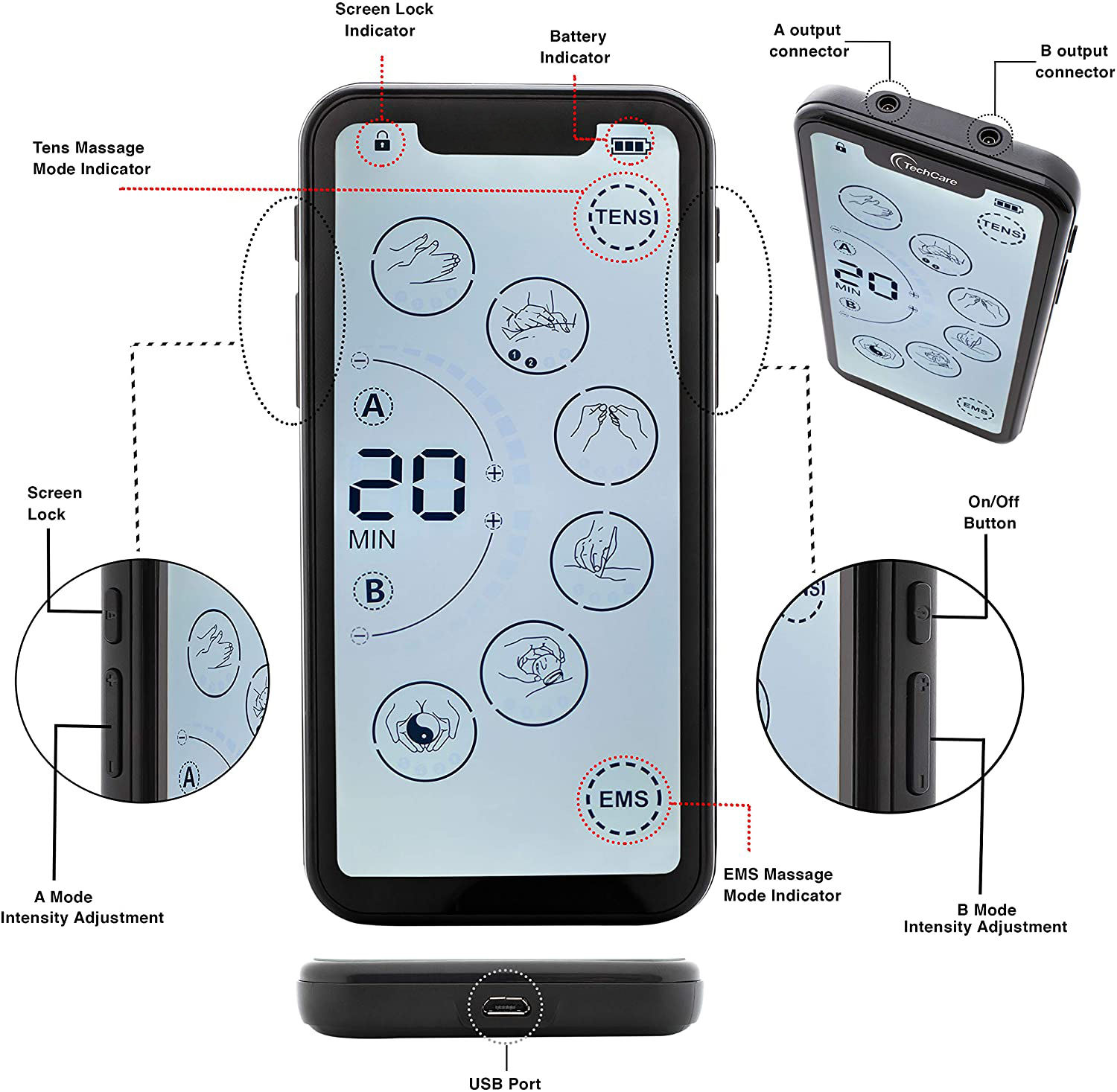

1. Innovative "Notch" Touchscreen with Hybrid Controls

Setting a new standard for aesthetic design in health devices, this modern Dual Channel Massager features a sleek "notch" HTN positive display. The brilliant white backlight ensures maximum visibility in both bright daylight and dark environments. For ultimate convenience, this Dual Channel Massager employs a hybrid control system. Users can effortlessly switch between modes and adjust treatment timers by directly tapping the designated touch zones on the screen. For intensity adjustments, you can either touch the on-screen +/- icons or utilize the dedicated physical up/down buttons located on the side of the unit, providing a highly tactile and accessible experience for all age groups.

2. 24 Specialized TENS & EMS Therapeutic Modes

To cater to a wide spectrum of physical conditions, this highly capable Dual Channel Massager comes pre-programmed with 24 expertly calibrated massage modes. The system is intelligently categorized into 6 major therapeutic groups, each containing 4 specialized sub-modes. The clear interface distinctly illuminates whether the active mode is applying TENS (Transcutaneous Electrical Nerve Stimulation) for blocking pain signals, EMS (Electrical Muscle Stimulation) for muscle conditioning, or a dual-action combination of both. This comprehensive Dual Channel Massager effortlessly simulates traditional techniques to penetrate deep muscle layers and relieve persistent aches.

3. Unified Mode Logic with Independent Intensity Delivery

Simplicity meets highly personalized therapy. This intelligent Dual Channel Massager utilizes a shared-mode logic across its dual output system, ensuring that both Channel A and Channel B operate in perfect therapeutic harmony. However, the intensity delivery remains completely independent. With 20 precise levels of power adjustment (displayed as 10 visual bars on the screen), this versatile Dual Channel Massager allows you to apply a gentle, soothing pulse to your delicate shoulder area on one channel, while driving a rigorous, deep-tissue massage into your robust lower back on the other.

4
. Advanced Smart Load-Detection & Safety Protocols

Your safety is our absolute priority. This highly reliable Dual Channel Massager is built with an advanced load-detection algorithm. If an electrode pad loses contact with your skin or the wire accidentally disconnects, the device immediately detects the break and automatically drops the intensity to zero. This prevents any sudden, uncomfortable shocks when the connection is re-established. Furthermore, to conserve battery life and ensure total peace of mind, the Dual Channel Massager features a 7-second auto-dimming backlight function and will automatically shut down entirely after 2 minutes of zero output or idle inactivity.

5. Efficient Power Management with Type-C Fast Charging

Never let a dead battery interrupt your recovery. This ultra-portable Dual Channel Massager is powered by a high-quality 3.7V / 180mAh rechargeable lithium battery, managed by a cutting-edge charging IC. Utilizing a modern Type-C USB interface (supporting wide 4.5V-20V charging input), the device reaches a full charge in just 2.5 hours. For your protection, the Dual Channel Massager is programmed to disable all outputs and remain powered off while charging. Boasting a remarkable static standby current of less than 30uA, the device retains its charge during months of storage, backed by an intelligent low-battery warning system that flashes the screen and auto-shuts down when voltage drops below 3.2V.

6. Customizable Treatment Timer & One-Key Hardware Lock

Tailor every session to your precise daily schedule. The built-in digital timer of this Dual Channel Massager defaults to a scientifically recommended 20-minute cycle upon startup but can be easily adjusted up to 60 minutes with simple screen taps. To prevent accidental adjustments while relaxing or moving around, this smart Dual Channel Massager features a dedicated physical lock button on its left side. A quick short press instantly locks the touchscreen interface, preventing unintended mode changes or intensity spikes while your device rests safely in your pocket.
