Multi-Zone Heated TENS Massager (LUUNAR Premium Edition)Product Overview
The SM9086 is a heated TENS patch massager designed for pain relief, warm therapy and body relaxation. It features 6 TENS modes, 20 intensity levels, 3 heat levels, Type-C charging and an 800mAh rechargeable battery, making it suitable for use on the neck, shoulders, back, waist, arms, legs and joints. A detachable silicone cover and optional remote control are available for customized B2B projects.
| Attribute |
Specification |
| Product Name |
Heated TENS Patch Massager |
| Model No. |
SM9086 |
| Application |
Neck, shoulders, back, waist, arms, legs and joints |
| Main Function |
Pain relief, TENS stimulation, 3-level heating and body relaxation |
| Channels |
Single TENS output with heating output ports |
| Channel Control |
TENS intensity and heat levels controlled separately |
| Modes |
6 TENS Modes |
| Intensity Levels |
20 Intensity Levels |
| Timer |
15-Minute Heating Timer; TENS Output Runs Continuously |
| Control Method |
Button Control + Optional Remote Control |
| Display |
Red, Green and Blue LED Indicator Lights |
| Battery Capacity |
3.7V / 800mAh |
| Charging Port |
Type-C |
| Charging Time |
About 3 Hours |
| Pulse Frequency |
1–100Hz ±10% |
| Pulse Width |
100–220μs ±10% |
| Load Detection |
Supported, TENS intensity returns to 0 when no load is detected |
| Customization |
OEM/ODM customization available |
Alleviate persistent muscle fatigue, joint stiffness, and deep-tissue soreness across your entire body with the high-performance Multi-Zone Heated TENS Massager. Beautifully styled in a classic ancient bronze finish, this versatile Multi-Zone Heated TENS Massager represents a powerful synthesis of low-frequency electrotherapy and targeted soothing heat. Enclosed within a detachable, soft-touch protective silicone sleeve featuring the signature "LUUNAR" emblem, the device delivers a premium tactile feel while safeguarding internal electronics. Engineered for full-body adaptability, this ergonomic Multi-Zone Heated TENS Massager easily treats your shoulders, neck, lower back, abdomen, or limbs, making it the perfect drug-free pain relief countermeasure for modern, active lifestyles.
Equipped with a high-capacity 800mAh rechargeable lithium battery, this robust Multi-Zone Heated TENS Massager introduces an advanced 4-point output configuration utilizing heavy-duty 10mm magnetic snap terminals. Among these, two ports are specifically wired to deliver dual-channel thermal heat therapy across three precise temperature levels (up to 42°C). Users can easily manipulate their treatment via intuitive physical buttons to cycle through 6 therapeutic massage programs and 20 progressive intensity steps. Supported by integrated smart skin-load detection, zero-intensity shock prevention, and universal Type-C fast charging, this comprehensive Multi-Zone Heated TENS Massager serves as a reliable, institutional-grade wellness companion built for daily physical recovery.
Key Advantages & Features
1. Striking Ancient Bronze Aesthetic with "LUUNAR" Silicone Sleeve
Break away from boring medical designs with a luxury aesthetic. This premium Multi-Zone Heated TENS Massager features a distinguished ancient bronze chassis wrapped inside a custom-molded, removable silicone sleeve. Finished with a specialized silk-screened "LUUNAR" logo and coated in skin-friendly soft-touch oil, the protective sleeve optimizes grip comfort, dampens drops, and ensures that the Multi-Zone Heated TENS Massager feels organic and comfortable against the skin during prolonged treatment sessions.
2. Dual-Channel Thermal Therapy with 3-Level Heating
Accelerate recovery through the power of combined thermal-electro stimulation. This specialized Multi-Zone Heated TENS Massager features a dedicated heating circuit that operates on a precise 15-minute safety timer. Users can toggle through three customized heat thresholds: Level 1 provides a gentle warmth up to 38°C, Level 2 offers a deeper 40°C thermal layer, and Level 3 delivers a robust 42°C heat envelope. This therapeutic warmth expands blood vessels, improves local microcirculation, and primes muscles for maximum TENS waveform penetration.
3. Advanced 4-Point Magnetic Snap Output Interface

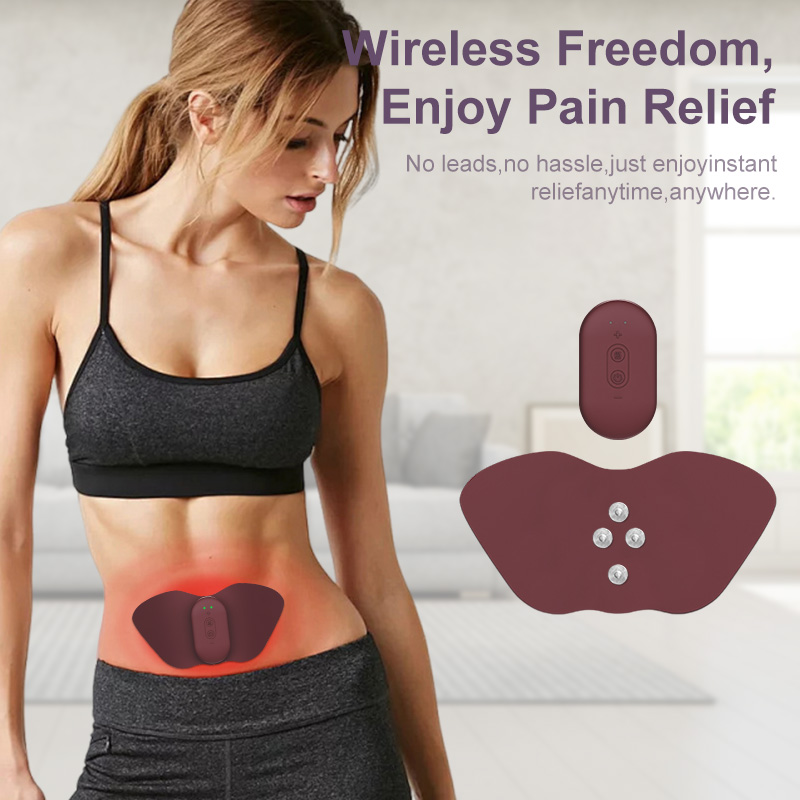

Engineered for expanded treatment coverage, the host of this innovative Multi-Zone Heated TENS Massager features four integrated 10mm magnetic snap receptors. This specialized layout includes two standard TENS wave outputs along with two multi-functional outputs capable of simultaneously transmitting electrical stimulation and thermal heat. The magnetic coupling mechanism allows for effortless, blind connection to custom heated pads, ensuring an unyielding, high-fidelity signal transmission that will not slip or detach during movement.
4. 6 Calibrated Massage Programs & 20 Intensity Levels
Take complete control over your physical therapy. This heavy-duty Multi-Zone Heated TENS Massager offers 6 professionally tuned pulse envelopes designed to mimic classical therapeutic techniques. Complemented by 20 distinct micro-increments of intensity, this Multi-Zone Heated TENS Massager accommodates all sensitivity levels. While the heating function operates on a 15-minute countdown, the TENS generator allows for continuous, uninterrupted operation, providing a sustained block against chronic neural and muscular discomfort.
5. Smart Trichromatic LED Visual Feedback System
Operate your device smoothly without needing complex, bright LCD screens. This smart Multi-Zone Heated TENS Massager utilizes an elegant, power-saving tri-color (Red, Green, Blue) dual-LED indicator array. The left LED cluster communicates active pulse modes and safety warnings via specific color blending, while the right LED cluster visualizes your active heating intensity. When adjusting parameters, the user receives instantaneous, color-coded visual confirmation of the device’s current therapeutic output state.
6. High-Capacity 800mAh Battery with Advanced Safety Lockout
Powering this high-performance Multi-Zone Heated TENS Massager is an integrated 800mAh rechargeable lithium cell, managed by a smart onboard charging IC to ensure an ultra-low static standby current (< 30uA). The universal Type-C port fully replenishes the device in 3 hours. For absolute end-user safety, this Multi-Zone Heated TENS Massager features an automatic charging hardware lockout that prevents the device from turning on while plugged into a power source, alongside a smart skin-load sensor that forces TENS intensity to zero if an electrode pad drops contact.
Technical Specifications
Parameter Items Official Product Specifications
Product Name LUUNAR Premium Multi-Zone Heated TENS Massager
Chassis Color & Material Ancient Bronze ABS Host + Detachable Soft-Touch Silicone Sleeve
Output Configuration 4x 10mm Magnetic Snap Receptors (Includes 2x Thermal Heat Outputs)
Massage Modes 6 Programmed Pulse Sequences (Indicated via RGB Color Mixes)
Intensity Range 20 Adjustable Levels (Resets to Level 0 upon startup/mode swap)
Heating Performance Level 1: ~38°C (30% R) | Level 2: ~40°C (60% R) | Level 3: ~42°C (100% R) [±2°C]
Battery Specification 3.7V / 800mAh Rechargeable Lithium Ion Battery (Model: 393450)
Charging Port Type Type-C USB (DC 5V Input, Onboard Protection IC Managed)
Charging Protocols Max 0.45A Current; Full charge in ~3 Hours; Operation locked during charge
Battery Life Metrics Continuous ~1.5 Hours of usage under maximum power/heat output
Standby Power Retention Static Current < 30uA (Ultra-low leakage for long-term storage)
Pulse Frequency Range 1Hz — 100Hz ± 10% (As per mode specific envelope charts)
Pulse Width Range 100uS — 220uS ± 10%
Output Waveform Symmetrical Biphase Rectangular Wave
Maximum Load Voltage ≤ 60V ± 10% (Tested under standard 500Ω resistance load)
Voltage Steps ≤ 4V Step variance between adjacent intensity settings
Safety Mechanisms Smart No-Load Resistance Detection, 2-Minute Idle Auto-Shutdown
Operational Timers 15-Minute Auto-Timer for Heating; Continuous TENS Output

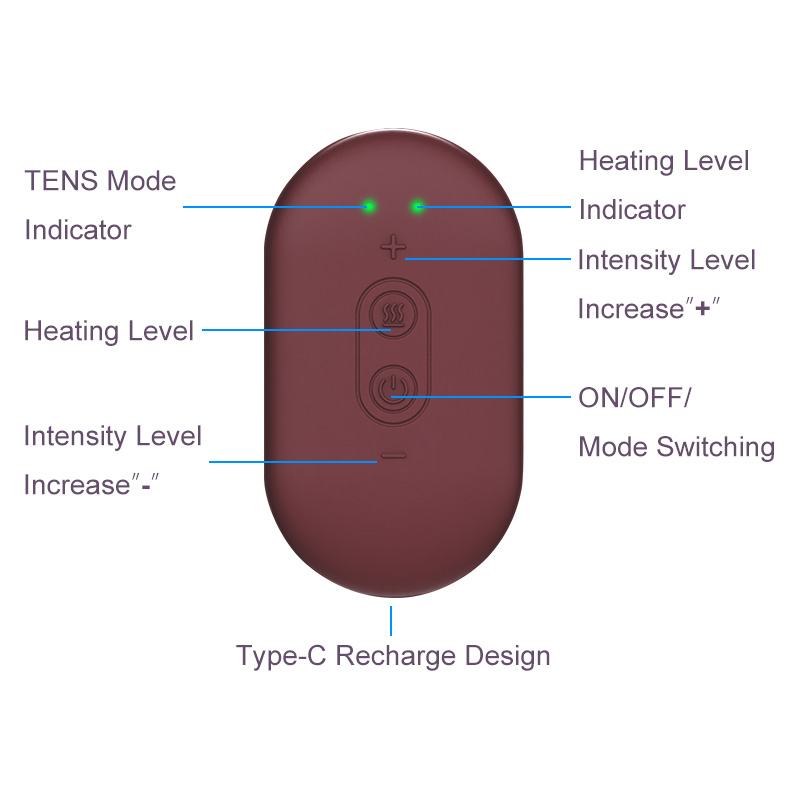

Physical Interfaces Power/Mode (1s Long Press On-Off / Short Press Mode), Heat Toggle, Intensity (+ / -)
×
